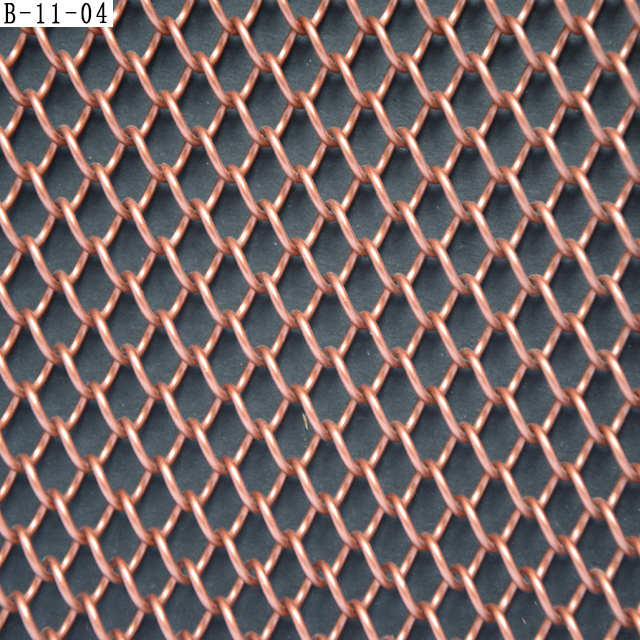

Window Treatment B-11

Adopting metal as the raw material, our coil drapery is of durability and easy to install. Thus it is widely used in interior flexible decoration, including partition walls, ceiling lamps, curtains, and so on.
  • Port: Xingang, Tianjin (by sea); Beijing (by air)
  • Brand Name: MASEWA
  • Certifications: ISO9001:2008
  • Payment Terms: T/T, L/C
Quantity:
Adopting metal as the raw material, our Window Treatment is of durability and easy to install. Thus it is widely used in interior flexible decoration, including partition walls, ceiling lamps, curtains, and so on.
Whatever request you have, Masewa, with the great professional team and over ten years of manufacturing experience, is able to offer customized woven wire mesh to meet your request.
Material
In order to adapt to different situations, our aluminum magnesium alloy coil drapery utilizes a verity of raw materials, among which stainless steel, magnalium and carbon steel are popular. Stainless steel coil drapery, strongly against corrosion, is mainly used for exterior decoration. Magnalium coil drapery, light in weight, anti-corrosive in performance and diverse in color, is preferable for interior decoration. Carbon steel coil drapery is cost-effective because of its multiple colors and reasonable price.
Weave
Our Magnesium Alloy Coil Drapery is woven in spiral pattern, which engenders the hollow-out decorative effects.
Uses
Aluminum Alloy Coil Drapery performs well when it has a wrinkle effect like the fabric drapery. The recommended wrinkle effect is 150%-200%. In order to create this kind of wrinkle effect, the minimum width of the drapery should be 1.2 times over the length of the curtain rail, because the drapery is naturally self-diminished due to the spiral structure, when it is hung.
Package
We adopt fumigation-free plywood box for package in accord with the export requirement.
Installation
Masewa provides a complete selection of accessories. Customer can choose straight or curvy curtain rail system on their request. It is easy to install the rail system. First, the rail should be fixed into the wall or the place the drapery will used for. Then, you can slide metal pulleys into the rail. Finally, stop the rail ends up.
1.Straight rail system
The rail is manufactured with aluminum alloy and equipped with metal pulleys. Each pulley can bear 80kg weight.
2.curvy  rail system
Equipped with metal pulleys, the rail is processed with aluminum alloy. Each pulley can sustain the weight of 80kg. It is flexible enough to shape.
铝镁合金金属垂帘  铝镁合金金属垂帘
Specifications:
Code
Material

Wire diameter

Aperture

Thickness

Weight
E-2 carbon steel

0.9mm 6.3mm 3/16″ 5.8mm 4.0㎏/㎡
E-6 1.2mm 8.5mm 1/4″ 7.1mm 6.0㎏/㎡
E-7 1.0mm 6.8mm 1/4″ 6.5mm 5.5㎏/㎡
A-01-30 Stainless steel

1.0mm 8.4mm 1/4″ 6.7mm 3.5㎏/㎡
A-02-30 1.2mm 6.8mm 3/16″ 6.5mm 5.8㎏/㎡
A-16-30 1.2mm 8.5mm 1/4″ 7.1mm 5.0㎏/㎡
B-1 Magnesium alloy

1.2mm 8.5mm 1/4″ 7.1mm 2.0㎏/㎡
B-2 1.2mm 6.8mm 3/16″ 6.5mm 2.5㎏/㎡
B-11 1.0mm 5.5mm 3/16″ 5.5mm 1.7㎏/㎡
B-4 2.0mm 12mm 1/2″ 12.0mm 3.0㎏/㎡
Remarks:May make to order as per required specification, size and color.

packing 02   packing 03 packing 04   packing 01
Metal Coil Drapery   Metal Coil Drapery Metal Coil Drapery   Metal Coil Drapery
